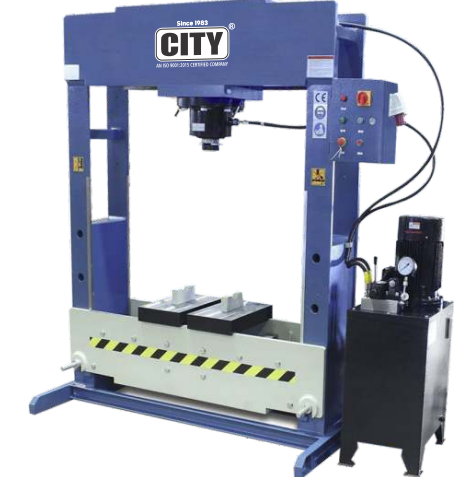

H Frame Press
Standard Equipment
- Electric Motor ABB / Siemens
- Control Panel With Selection of Inch-Once-Auto Mode of Operation
- Foot Switch Fine Stroke Adjustment Rod With Limit Switch
- Front Side Sheet Support
Optional Equipment
- Two Hand Operated Mechanical Device
- Auto Lubrication System
- Electrical Motor, Starter & V-Belt
- Stroke Counter
FRAME CONSTRUCTION
H (Pillar) Type Power Press Machine fabricated from IS-2062 graded rolled steel plates. The frame is deeply reinforced and fine machined after stress relieving. The interlocked design provides direct support to the frame. This frame is strain-free and eliminates welds at load supports. Thus, the accuracy of the machine is never disturbed.
Table & Slide (Ram)
Table and Slide are made of high-grade heavy-duty cast iron and properly seasoned. They are perfectly aligned with each other to obtain high accuracy and precision press operation.
Technical Parameters
| Capacity In Tonnes | Distance Between Column | Distance Between Ram To Bed | Stroke | Motor H.P. |
|---|---|---|---|---|
| 5 | 160x400 | 125x500 | 100 | 2 |
| 15 | 200x750 | 150x650 | 150 | 3 |
| 25 | 280x800 | 175x800 | 175 | 3 |
| 40 | 375x950 | 175x900 | 175 | 3 |
| 60 | 425x1010 | 175x900 | 200 | 5 |
| 75 | 450x1125 | 175x900 | 200 | 5 |
| 100 | 500x1200 | 175x900 | 200 | 5 |
| 150 | 600x1300 | 200x1000 | 225 | 7.5 |
| 200 | 700x1400 | 400x1200 | 225 | 10 |
| 250 | 800x1500 | 400x1200 | 250 | 15 |
| 300 | 900x1600 | 400x1200 | 250 | 20 |
* All dimensions are in mm
