Hydraulic Iron Worker
Standard Equipment

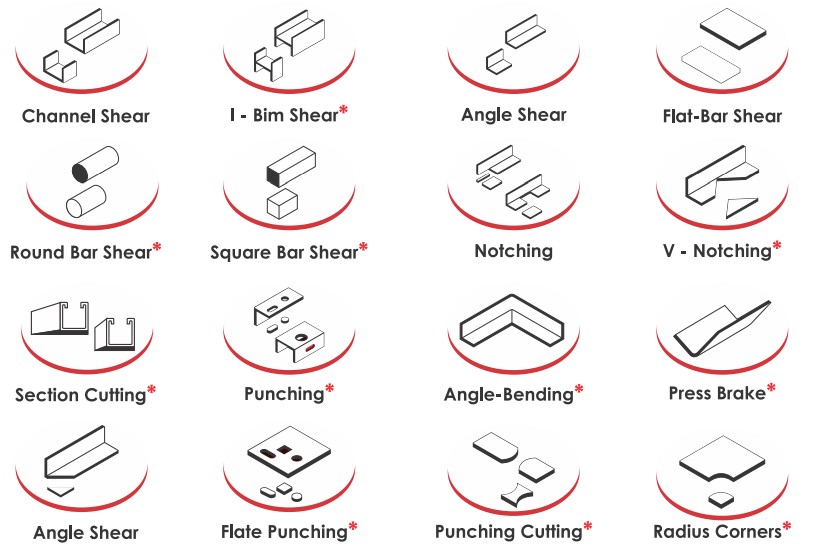

- Blade for Angle Cutting, Channel Cutting (Any one size), Flat Cutting & Notching
- Fine Stroke Adjustment Rod with Limit Switch
- Manual / Hydraulic Job Clamping Device
- Electric Control Panel
- Pair of Foot Pedal
- Main Drive Motor
Optional Equipment
- Blade For Round Bar, Square Bar Cutting, 'I' - Beam, Section Cutting
- Any Type of Punching Notching & Bending Die
- First Fill of Hydraulic Oil
- Main Back Gauge
FRAME CONSTRUCTION
Hydraulic Iron Worler Machine fabricated from IS-2062 graded rolled steel plates. The frame is deeply reinforced and fines machines after stress relieving. The interlocked design put direct support to the frame. This frame is strain free and eliminates welds at load supports. Thus the accuracy of the machine is never disturbed.
Technical Parameters
| MODEL | CIW - 01 | CIW - 02 | CIW - 03 | CIW - 04 | CIW - 05 | CIW 06 | CIW 07 |
|---|---|---|---|---|---|---|---|
| CAPACITY | 55 TON | 80 TON | 110 TON | 130 TON | 160 TON | 200 TON | 250 TON |
| CHANNEL | 100 X 50 | 150 X 75 | 175 X 75 | 200 X 75 | 225 X 80 | 250 X 80 | 300 X 90 |
| I BEAM | 100 X 50 | 125 X 75 | 150 X 80 | 150 X 80 | 175 X 85 | 175 X 85 | 200 X 100 |
| ANGLE SHEAR | 100 X 100 X 08 | 100 X 100 X 10 | 130 X 130 X 10 | 150 X 150 X 10 | 150 X 150 X 12 | 175 X 175 X 12 | 175 X 175 X 14 |
| ROUND | 32 | 40 | 50 | 50 | 60 | 60 | 70 |
| SQUARE | 32 X 32 | 38 X 38 | 50 X 50 | 50 X 50 | 60 X 60 | 60 X 60 | 70 X 70 |
| FLAT BAR SHEAR MAX. | 300 X 12 | 450 X 14 | 500 X 16 | 550 X 16 | 600 X 20 | 650 X 25 | 700 X 25 |
| FLAT BAR SHEAR MIN. | 150 X 16 | 200 X 18 | 250 X 20 | 300 X 22 | 350 X 24 | 400 X 30 | 450 X 32 |
| SQUARE NOTCHING | 50 X 40 X 05 | 60 X 40 X 06 | 80 X 60 X 06 | 80 X 60 X 10 | 80 X 60 X 12 | 80 X 80 X 12 | 100 X 80 X 12 |
|
PUNCHING STATION DIAMETER X THICKNESS |
38 X 6 | 45 X 8 | 50 X 10 | 60 X 12 | 60 X 12 | 70 X 16 | 70 X 20 |
| ELECTRIC POWER | 5 HP | 7.5 HP | 10 HP | 15 HP | 15 HP | 20 HP | 25 HP |
| Machine Price |
* All dimensions are in mm
