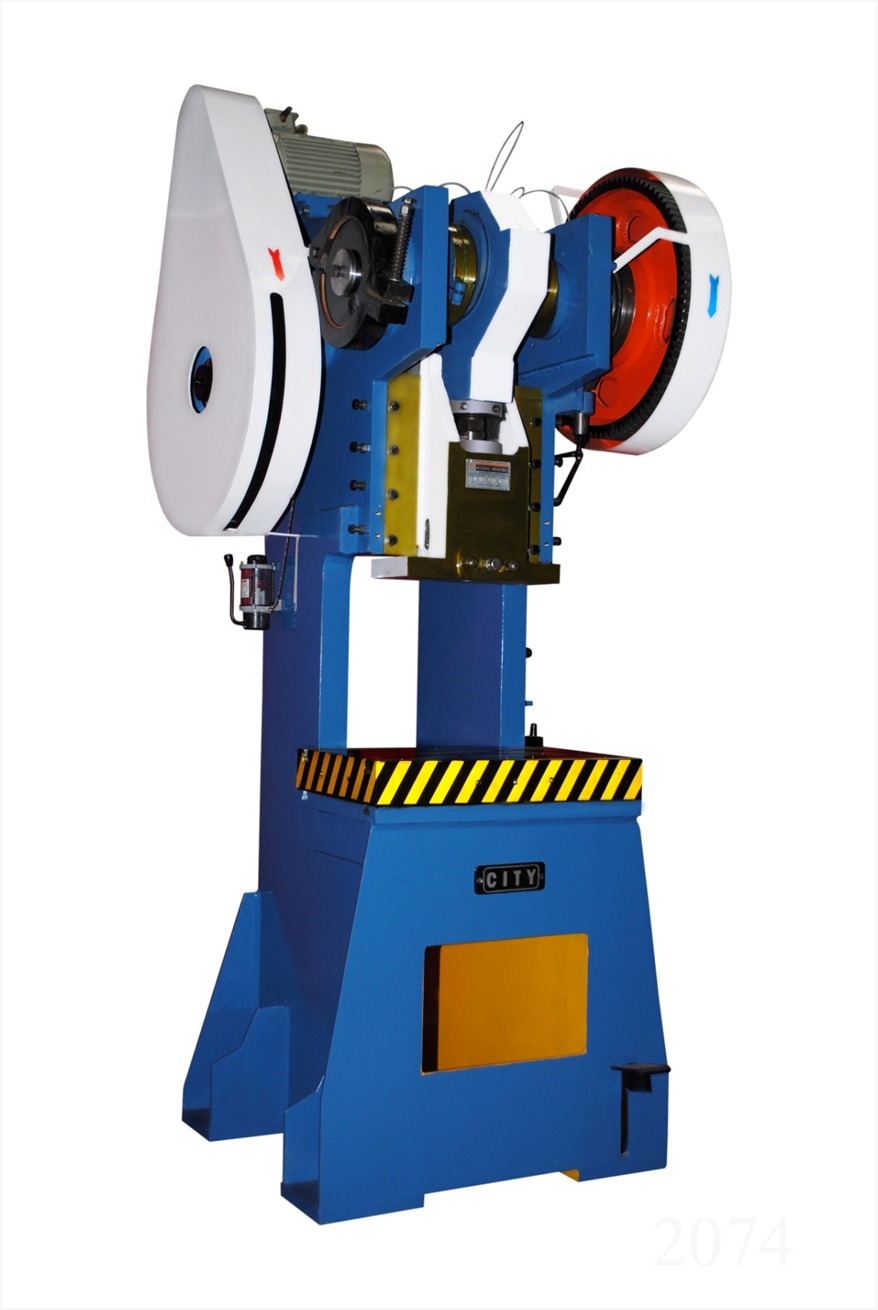

Mechanical Power Press

Standard Equipment

Heavy-duty fabricated / rigid machine frame construction.
Precision-machined crankshaft for smooth and reliable operation.
Adjustable slide stroke for different job requirements.
Adjustable slide height / shut height.
Precision-guided ram for accurate press operation.

Optional Equipment

Pneumatic clutch and brake system.
Variable frequency drive (VFD) for speed control.
Motorized slide adjustment.
Motorized die-height adjustment.
Automatic centralized lubrication system.
Automatic lubrication monitoring system.

FRAME CONSTRUCTION

The Mechanical Iron Worker is built with a heavy-duty rigid steel frame manufactured from high-quality IS-2062 grade steel plates. The robust frame is designed to withstand continuous shearing, punching, notching and angle-cutting operations with minimum vibration and deformation. The frame is stress-relieved after fabrication to minimize internal stresses and maintain dimensional stability. Critical mounting and working surfaces are precision machined to ensure accurate alignment of the punching and shearing mechanisms

Technical Parameters

MODEL	5 Ton	10 Ton	20 Ton	30 Ton	50 Ton	80 Ton	100 Ton	150 Ton	200 Ton	250 Ton
Crank Shaft Dia.	50	58	73	83	95	114	127	152	158	165
Stroke Adjustment	6 TO 25	6 TO 50	10 TO 62	13 TO 75	13 TO 100	13 TO 112	13 TO 125	13 TO 125	165	165
Slide Adjustment	30	40	50	50	50	60	60	60	70	70
Hole In Ram	19	25	32	38	51	51	55	60	63	63
Hole In Bed	51	70	89	102	127	127	191	200	216	229
Length & Width Of Bed	230 X 142	381 X 288	455 X 250	508 X 355	650 X 400	750 X 500	800 X 650	800 X 650	1016 X 736	1067 X 778
Die To Bed To Ram	150	203	230	266	350	450	450	450	519	544
H.P. / R.P.M	0.75 / 1440	1 / 1440	2 / 1440	3 / 1440	5 / 1440	7.5 / 1440	10 / 1440	15 / 1440	20 / 1440	25 / 1440
Weight Of Approx Kg.	255	525	1100	1300	2300	3000	4500	5500	9100	11700

* All dimensions are in mm
