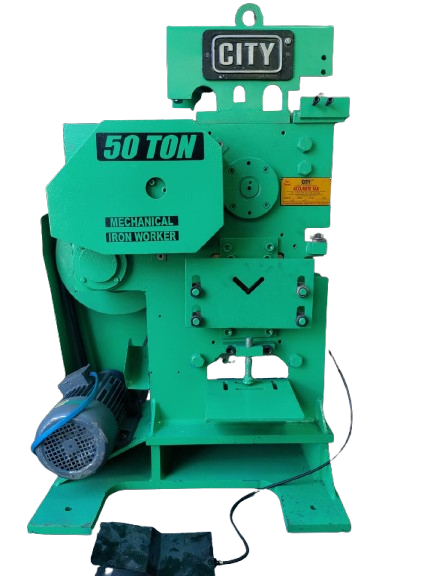

50 Ton
Standard Equipment
- High-Capacity Punching Unit with Standard Punch & Die Set
- Round Bar, Square Bar & Flat Bar Cutting Station
- Heavy-Duty Notching Station
- Mechanical Drive with Precision Operation
Optional Equipment
- Oversize Punch & Die Sets
- Pipe & Tube Notching Attachment
- Material Support & Measuring Table
- Custom Tooling Package
- Enhanced Safety Guarding
FRAME CONSTRUCTION
Technical Parameters
| MODEL | MIW-50 |
|---|---|
| Max Force | 60 TON |
| Tool STROKE | 36mm |
| Strokes Times | 30 times/min |
| Motor Power | 3 KW/415V |

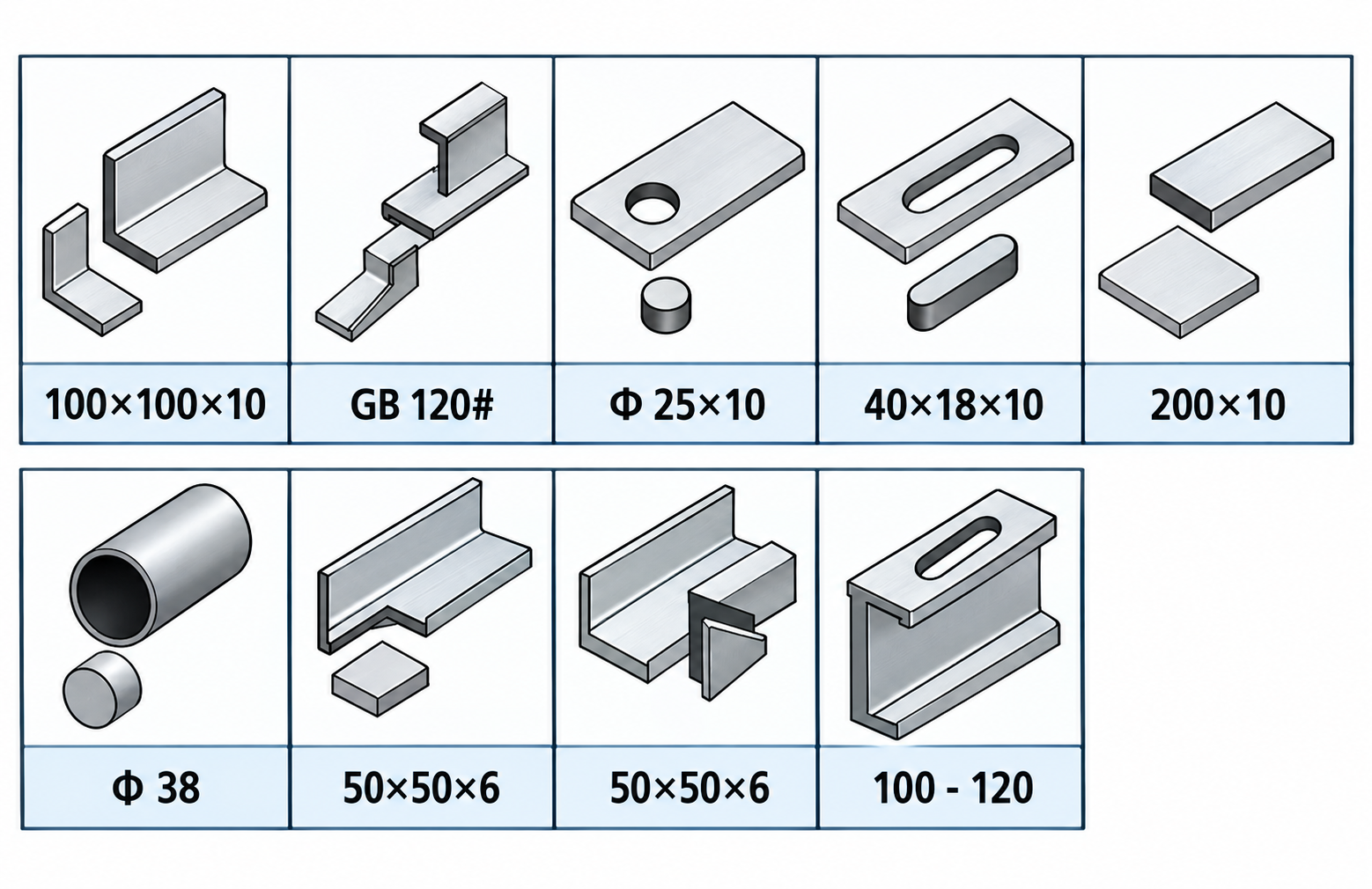

| Round Punching | 22x10 mm |
| Capsule Punching | 40x18x10 mm |
| Angle Cutting | 100x100x8 mm |
| Channel Cutting | 100 x50 mm |
| Cutting Blade | 230 mm |
| Flate Cutting | 200x10 mm |
| Nothing Tool | 65x65 mm |
| Round Bar | 35 mm |
| Square Bar | 30 mm |
| Overall Dimensions (LXWXH) | 900x600x1200 mm |
| Machine Weight | 700 KG |
| Machine Price |
* All dimensions are in mm
