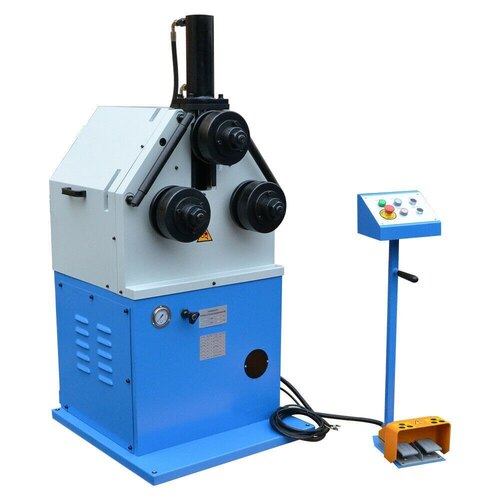

Double Pinch Section Bending
Standard Equipment
- Two Multi Purpose Roll Tool Suitable to bend Angle, Flat, Square & Solid Round.
- Screw Adjustment Rod.
- Nut Spanner.
- Movable Control Panel.
- Main Motor Drive for Gear Box.
- Hydraulic Unit with Motor.
Optional Equipment
- Digital Read-Out System (DRO).
- Extra Roll Tools for Round Pipe and Profiles.
- Variable Speed.
- First Fill of Hydraulic Oil.
FRAME CONSTRUCTION
The Double Pinch Section Bending Machine is constructed with a heavy-duty, rigid MS fabricated frame designed to withstand high bending loads and continuous industrial operation. The robust frame provides excellent stability and minimizes vibration during the bending process.
Technical Parameters
| Model | DPB-25 | DPB-50 | DPB-75 | DPB-100 | DPB-150 | DPB-200 |
|---|---|---|---|---|---|---|
| Pipe | 30 x 2 | 45 x 4 | 65 x 5 | 80 x 5 | 125 x 5 | 150 x 5 |
| Round Tube | 25 x 1.5 | 50 x 2 | 75 x 3 | 100 x 3 | 140 x 3 | 160 x 3 |
| Square Tube | 25 x 1.5 | 40 x 2 | 70 x 3 | 85 x 4 | 100 x 5 | 125 x 5 |
| Angle Iron | 30 x 3 | 45 x 6 | 65 x 6 | 85 x 8 | 120 x 10 | 150 x 10 |
| Roll Adjustment | Manual | Manual | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Motor Power (HP) | 1 | 3 | 5 | 7.5 | 15 | 20 |
| Weight (Kg) | 350 | 690 | 1120 | 1780 | 2150 | 2650 |
* All dimensions are in mm
