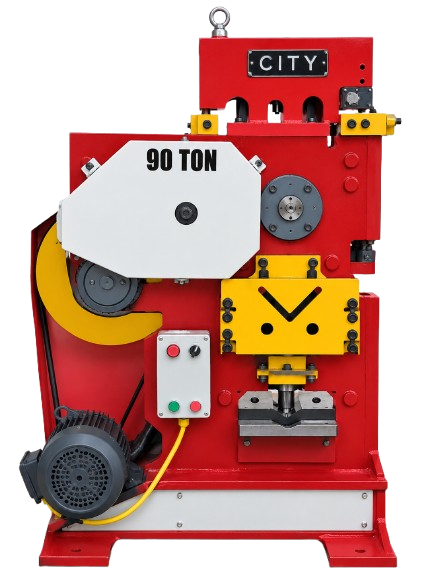

90 Ton
Standard Equipment
- 90 Ton punching capacity
- Heavy-duty welded steel frame construction
- Flat bar shear station
- Angle shear station
Optional Equipment
- Channel shear attachment
- Square tube shear attachment
- Rod shear attachment
- V-notcher tooling
FRAME CONSTRUCTION
Technical Parameters
| MODEL | MIW-90 |
|---|---|
| Max Force | 90 TON |
| Tool STROKE | 36mm |
| Strokes Times | 30 times/min |
| Motor Power | 4 KW/415V |
| Round Punching | 31x12 mm |
| Capsule Punching | 40x21x12 mm |
| Angle Cutting | 125x125x8 mm |
| Channel Cutting | 150 x75 mm |
| Cutting Blade | 340 mm |
| Flate Cutting | 340x12 mm |
| Nothing Tool | 80x70 mm |
| Round Bar | 40 mm |
| Square Bar | 30 mm |
| Overall Dimensions (LXWXH) | 1100x600x1450 mm |
| Machine Weight | 1000 KG |
| Machine Price |
* All dimensions are in mm
