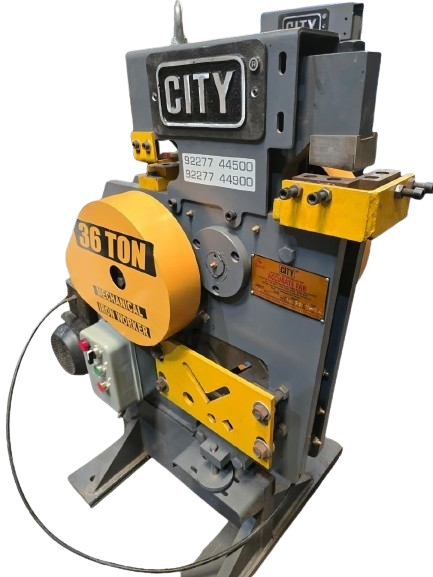

36 Ton
Standard Equipment
- Blade for Round Bar, Square Bar & Flat Bar Cutting
- 'I' Beam, Angle & Channel Section Cutting
- Punching Unit with Standard Punch & Die Set
- Notching Station
- Main Back Gauge
- Heavy-Duty Mechanical Drive System
- Centralized Lubrication System
Optional Equipment
- Special Punching, Notching & Bending Dies
- Additional Punch & Die Sets
- Pipe Notching Attachment
- Extended Back Gauge
- Material Support Table
- Custom Tooling Solutions
- Safety Guarding System
FRAME CONSTRUCTION

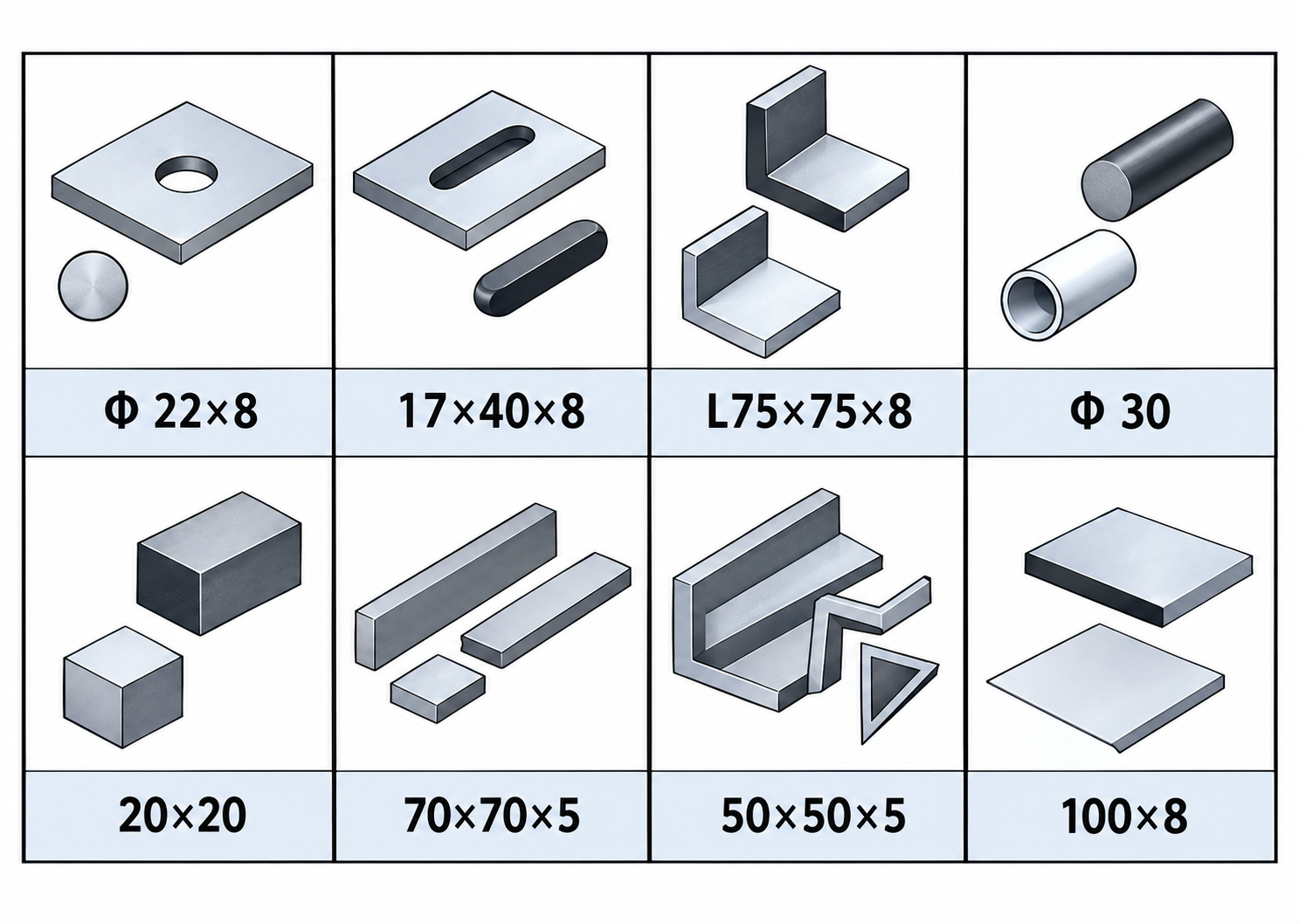

Technical Parameters
| MODEL | MIW-36 |
|---|---|
| Max Force | 36 TON |
| Max Force | 36 TON |
| Tool STROKE | 27mm |
| Strokes Times | 30 times/min |
| Motor Power | 2.2 KW/415V |
| Round Punching | 22x8 mm |
| Capsule Punching | 36x16x8 mm |
| Angle Cutting | 75x75x8 mm |
| Channel Cutting | 75x40 mm |
| Cutting Blade | 200 mm |
| Flate Cutting | 200x8 mm |
| Nothing Tool | 65x65 mm |
| Round Bar | 30 mm |
| Square Bar | 20 mm |
| Overall Dimensions (LXWXH) | 900x600x1100 mm |
| Machine Weight | 480 KG |
| Machine Price |
* All dimensions are in mm
