Single Cylinder Multi Cutter
Standard Equipment
- Single Cylinder Hydraulic Operation
- Multi-Cutter Arrangement
- Heavy-Duty Rigid Machine Structure
- Hydraulic Clamping System
- Adjustable Cutting Stroke
- Adjustable Cutting Speed
Optional Equipment
- Automatic Material Feeding System
- Automatic Length Stopper
- Hydraulic / Automatic Back Gauge
- Digital Length Display
- Programmable Control System
- Variable Speed Drive
FRAME CONSTRUCTION

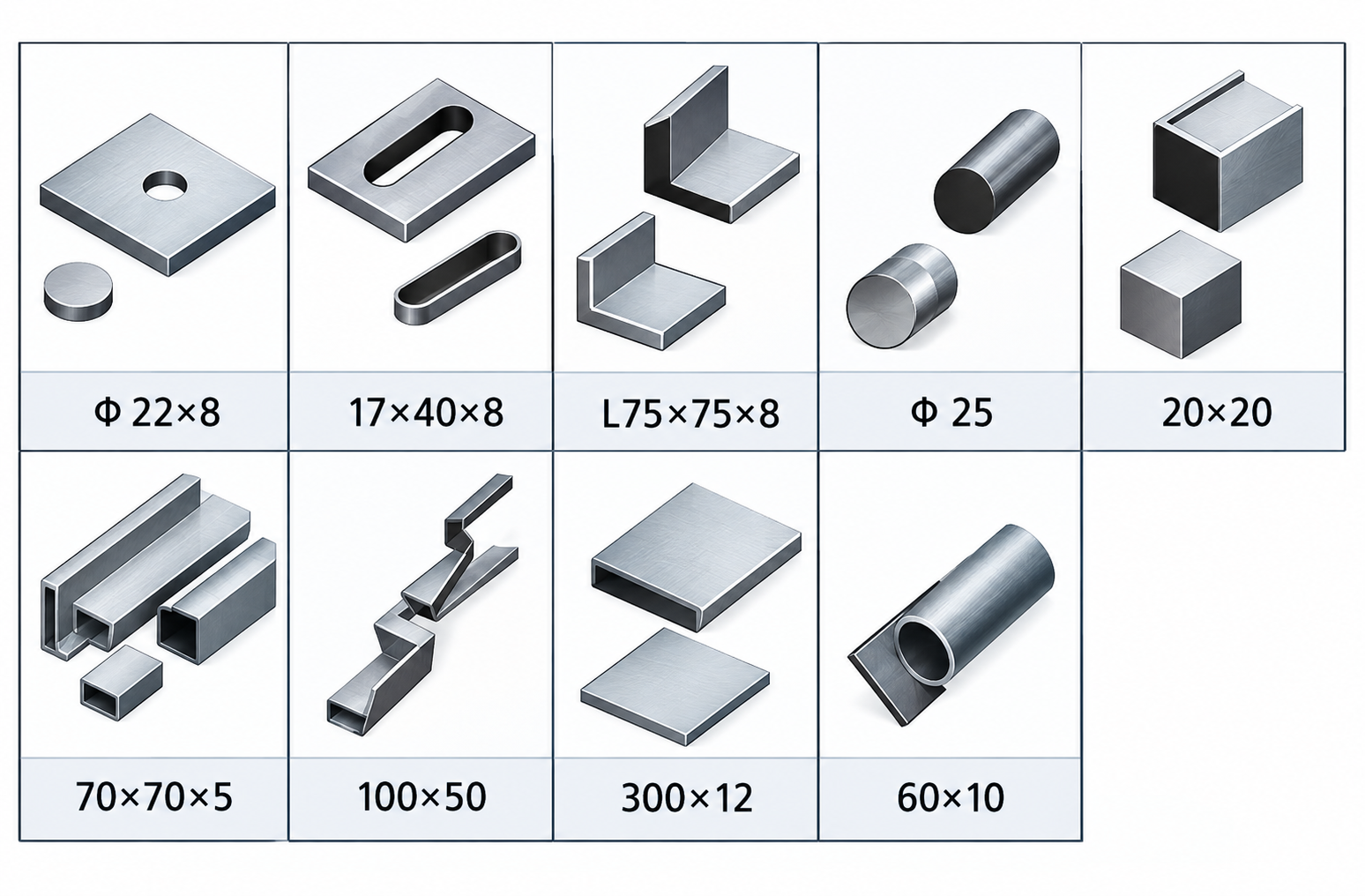

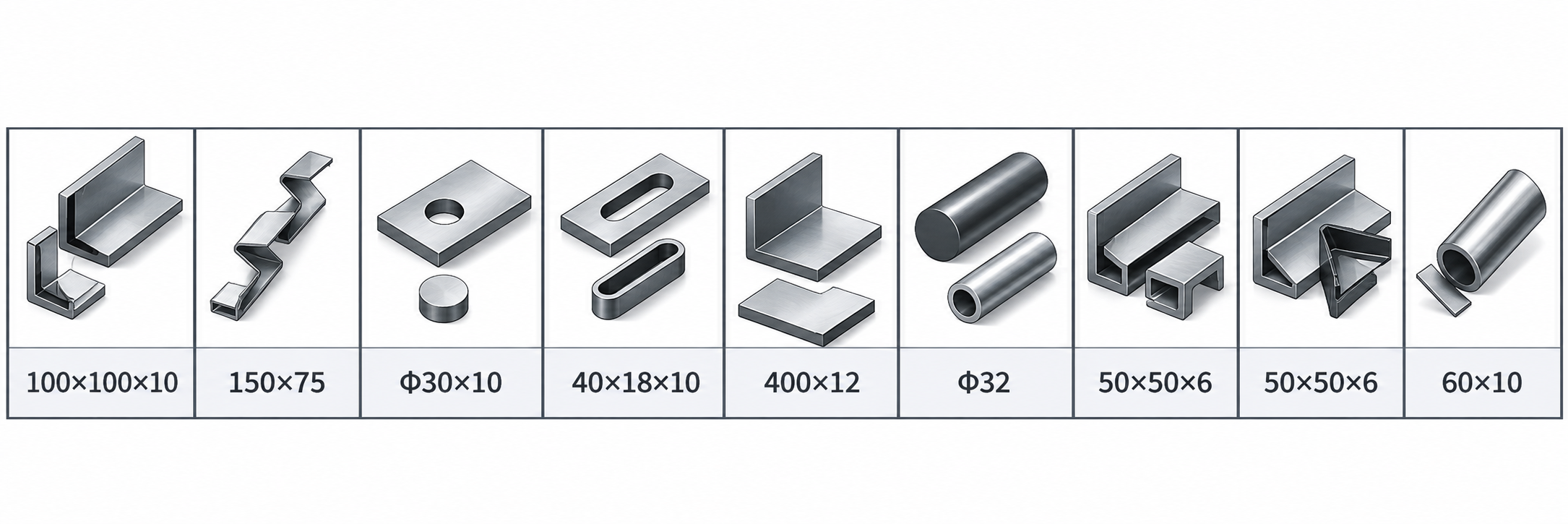

Technical Parameters
| MODEL / TONNAGE | HMC 60 TON SINGLE CYLINDER |
HMC 80 TON SINGLE CYLINDER |
HMC 100 TON SINGLE CYLINDER |
|---|---|---|---|
| C-Channel | 75 x 40 MM AND 100 x 50 MM |
100 x 50 MM AND 125 x 65 MM |
125 x 65 MM AND 150 x 75 MM |
| Angle Shear | 75 x 75 x 8 MM | 100 x 100 x 10 MM | 125 x 125 x 12 MM |
| Round | 25 MM | 32 MM | 38 MM |
| Flat Bar Shear | 300 x 12 MM | 400 x 12 MM | 450 x 16 MM |
|
Side Punching Station Ram Stroke |
NO | NO | NO |
|
Side Punching Station Bed to Ram |
NO | NO | NO |
|
Electric Power (HP) RPM |
3/1440 | 5/1440 | 7.5/1440 |
| Machine Price |
* All dimensions are in mm
