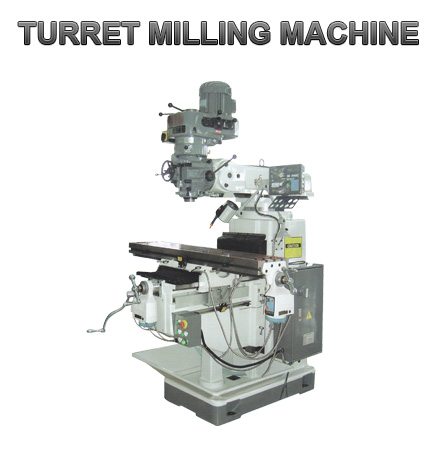

turret milling machine

Main Features

The turrent milling machine is characterized by compact configuration. high flexibility, and small floor space. The milling cutter has a 90-degree left/right swing and 45-degree forward/backward swing. Not only can the ram move forward and backword, but it can also rotate 360 degree on top of the column to dramatically increase themachining range.

All major machine components are made from high grade stress relieved cast iron. The column and knee slideways are of rectangular cross-section to provide a wide contact area and high rigidity. Slideway construction comprises an anti-friction material coating bearing on high frequency hardened surface for high machining precision and longer life.

The spindle is made of chrome molybdenum alloy and uses precision angular contact bearings for powerful cutting force combined with high precision.
Table Size (mm) 230 x 1067 254 x 1270
254 x 1270
254 x 1270
Table Load (kg) 250 300 300 350
X/Y/Z axis Travel (mm) 610/350/380 780(880)
Head Structure (Belt Driven Head) (Belt Driven Head) (Belt Driven Head) (Belt Driven Head)
Taper of Spindle Bore   R8 or NT30   NT40
Spindle Speed (rpm) 80 - 5400 80 - 5400 80 - 5400 80 - 5400
Spindle Feed Rate (mm/r) 0.04,0.08,0.15 0.04,0.08,0.15 0.04,0.08,0.15 0.04,0.08,0.15
Spindle Rotation Angle (degree) 45 45 45 45
Ram Travel (mm) 305 510 580 580
Ram Rotation Angle (degree) 360 360 360 360

Standard Accessories

Draw Bar
Tool Bax & Tools
Milling Quick Change Collets
Auto Feed Device
Oil Collection Tray
Cooling Pump
Digital Read Out Device
Combined Pad
Machine Lamp
