iron worker

Previous Next

Notching Punching Punching Angle Shear Round Bar Shear Square Bar Shear

Notching *Press Break *Angle Bending *Radius Corners *Vee Notching *Channel Shear

*Rounding Off
Corners
*Bilateral
Rounding off
*Cutting and
Rounding off
Flat-Bar Shear Angle Miter Shear *I-Beam Shear
IRON WORKER SPECIFICATION With Universal open Tooling 5 Station

MODEL
CIW-01
CIW-02

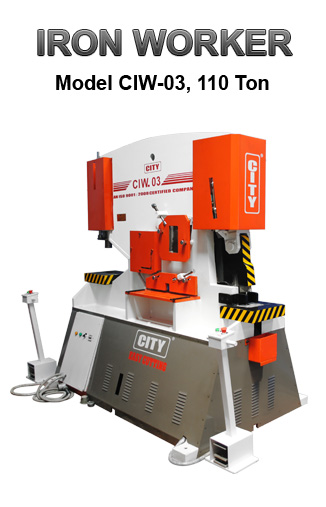

CIW-03
TON 55 TON 80 TON 110 TON
CHANNEL/ I BIM SHEAR 100 X 50 150 X 75 200 X 100
ANGEL SHEAR 100 X 100 X 10 100 X 100 X 12 130 X 130 X 08
ROUND / SQUARE SHEAR 38 MM 45 MM 60 MM
FLAT BAR SHEAR 300 X 12 430 X 15 530 X18
PUNCHING 40 X 08 40 X 08 50 X 10
NOTCHING 50 X 40 X 05 60 X 40 X 05 80 X 60 X 06
MOTOR H.P. 5/ 1400 7.5 / 1440 15/ 1440

OPTIONAL FEATURES

STANDARD ACCESSORIES
1. Blade for Round bar Cutting, Square Bar cutting, "I" Section Cutting
2. First Fill of Hydraulic Oil
3. Manual Back Gauge
4. Punching Die



1. Blade for Angle Cutting, Channel Cutting, Flat Cutting & Notching
2. Fine Stroke Adjustment Rod with Limit Switch
3. Manual Job Clamping Device
4. Electric Control Panel
5. Pair of Foot Switch
6. Main Drive Motor
* All data, specification & photographs are subject to change without prior notice.
