POWER PRESS SPECIFICATION

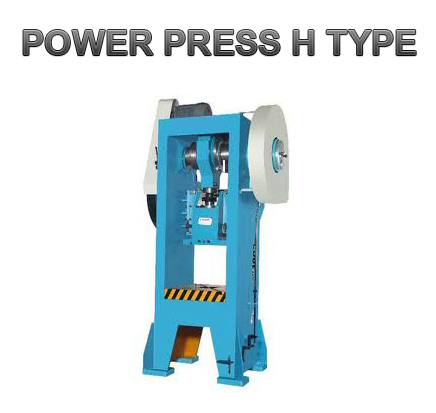

STEELBODY POWER PRESS FIXED, INCLINABLE & PILLER
City Presses are available in capacities of 10 tons to 250 tons geared & un geared models.

Frame :

frame is robust fabricated steel construction of rigid and interlock design. It is strain - free supports the ram and bed against undesired deflection under permissible loading condition.

Clutch & revolving key clutch linked with brake :

Main gear engages every time when the foot pedal is pressed drive provided through v belts and all the journals are fitted in gun metal, bearing spring operated powerful heavy duty breaks are of release type. It is operated by a cam.

Variable Stroke :

the variable stroke feature enables the press to meet all kinds of operations by employing short strokes for blanking and drawing operation of changing the stroke can be effected in less than a minute.

Inclinable Mechanism :

City inclinable mechanism is sufficiently high above the glare to be manually operated easily. Convently safety for standing position, frame pilot positioned well so height of press is not changed.

DESCRIPTION 5 TONS 10 TONS 20 TONS 30 TONS 50 TONS Crank shaft dia 50 58 73 83 95 Stroke Adjustment 6 TO 25 6 TO 50 10 TO 62 13 TO 75 13 TO 100 Slide Adjustment 30 40 50 50 50 Hole in Ram 19 25 32 38 51 Hole in Bed 51 70 89 102 127 Length & wide of Bed 230 x 142 381 x 288 455 x 250 508 x 355 650 x400 Dist Bed to Ram 150 203 230 266 350 H.P. / R.P.M 0.75/1440 1 /1440 2 /1440 3 /1440 5 /1440 Weight Approx Kg. 255 525 1100 1300 2300

DESCRIPTION 60 TONS 80 TONS 100 TONS 150 TONS 200 TONS 250 TONS Crank shaft dia 102 114 127 152 158 165 Stroke Adjustment 13 TO 112 13 TO 112 13 TO 125 13 TO 125 165 165 Slide Adjustment 60 60 60 60 70 70 Hole in Ram 51 51 55 60 63 63 Hole in Bed 127 127 191 200 216 229 Length & wide of Bed 700 x 425 750 x 500 800 x 650 800 x 650 1016 x 736 1067x 778 Dist Bed to Ram 350 450 450 450 519 544 H.P. / R.P.M 5 /1440 7.5 /1440 10 /1440 15 /1440 20 /1440 25 /1440 Weight Approx Kg. 2600 3000 4500 5500 9100 11700
